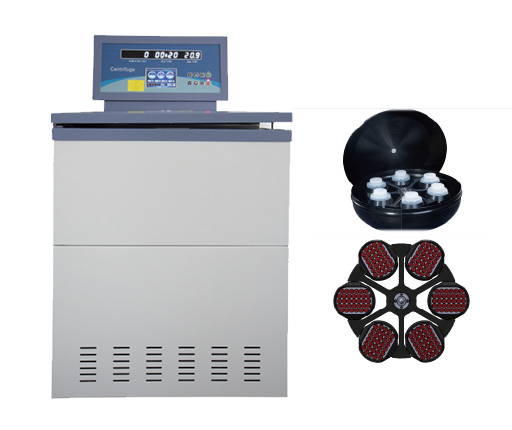

HYR6C Floor Large Capacity Low Speed
Refrigerated Centrifuge
OVERVIEW
HY6C The intimate portable fan hood hanger does not occupy the
laboratory space to store the fan hood. The front of the fuselage
is designed with an operation SOP guide map, which makes it easier
and more standard for laboratory personnel to use the instrument.
FEATURES
Intelligent control system
◆ Speed up/down mode can be set, and the speed centrifugal force
setting mode is provided. The user can set the speed up/down time
at will, and automatically calculate the RCF value.
◆ Program group shortcut key, large storage space, can store 99
program groups, easy to call at any time
◆ The electric door lock can choose whether to open the chamber
door automatically after the centrifugal operation
◆ Linear drive, 10 gear acceleration, 10 gear deceleration.
Settings can be selected according to different sample attributes
to ensure better separation effect of samples.
Excellent kernel performance
◆ Large LCD screen, user-friendly interface, intuitive display,
simple and convenient operation.
◆ High end chip, microcomputer control, direct drive frequency
conversion brushless motor, fast starting speed, stable operation
and long service life.
◆ Two modes can be set: start timing/arrival revolution timing.
◆ Special thermal insulation process is added inside, greatly
increasing the cooling capacity of the centrifuge, effectively
preventing the loss of refrigerant, ensuring fast refrigeration and
stable temperature during operation.
◆ Imported compressor unit, double circuit temperature control for
refrigeration and heating, accurate temperature control.
Careful and safe
◆ The rotor automatic identification system can identify the
maximum set value of the rotor, prevent personnel from
misoperation, and make centrifugation safer.
◆ The electromagnetic induction door protector with super
sensitivity and double electronic door lock catch design are
adopted, and the door cover protection, overspeed, over
temperature, imbalance and other multiple early warning protection
functions are provided to ensure safe operation.
◆ The fuselage is protected by three layers of high-quality all
steel structure, and the centrifugal inner chamber is treated by
professional environmental protection anti-corrosion process, which
is corrosion resistant.
◆ Self correcting balance swivel can be equipped. When the swivel
loses balance, error code will be displayed, an alarm will be
given, and the machine will stop automatically.
Intimate detail design
◆ It is equipped with a rotor cover that can be quickly locked for
easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with
one press.
◆ Special noise reduction system provides more comfortable
experimental environment for experimenters.
◆ The side door is designed to facilitate closing and locking the
centrifuge cover.
SPECIFICATION
| Model | HYR6C |
| Max Speed | 6500rpm | Power | 1500W |
| Max RCF | 6680×g | Noise Level | ≤ 65dB(A) |
| Max Capacity | 6×1000ml | Size | 840×730×1240 (mm) |
| Timer | 1s～23h59min | Net Weight | 190kg |
| Revolutions/min | ±10r/min | Rotor automatic recognition | Yes |
| Temp Range | -20℃～40℃ | Voltage | AC 220±22V 50Hz 30A |
| Temp Accuracy | ±1.0℃ | / | / |
ROTORS
| Rotor Name | Rotor NO. | NO. | Capacity | Max Speed(r/min) | Max RCF(×g) |
| Angle rotor | 1 | 1 | 6×250ml | 6500rpm | 6610×g |
| | 2 | 6×300ml | 6500rpm | 6610×g |
| 2 | 3 | 6×500ml | 6000rpm | 6680×g |
| Swing-out rotor | 3 | 4 | 6×1000ml(round basket) | 4200rpm | 5100×g |
| | 5 | 6×1000ml(square basket) | 4200rpm | 5100×g |
| | 6 | Automatic uncap 168*2~7ml (blood collection) | 4200rpm | 5100×g |
